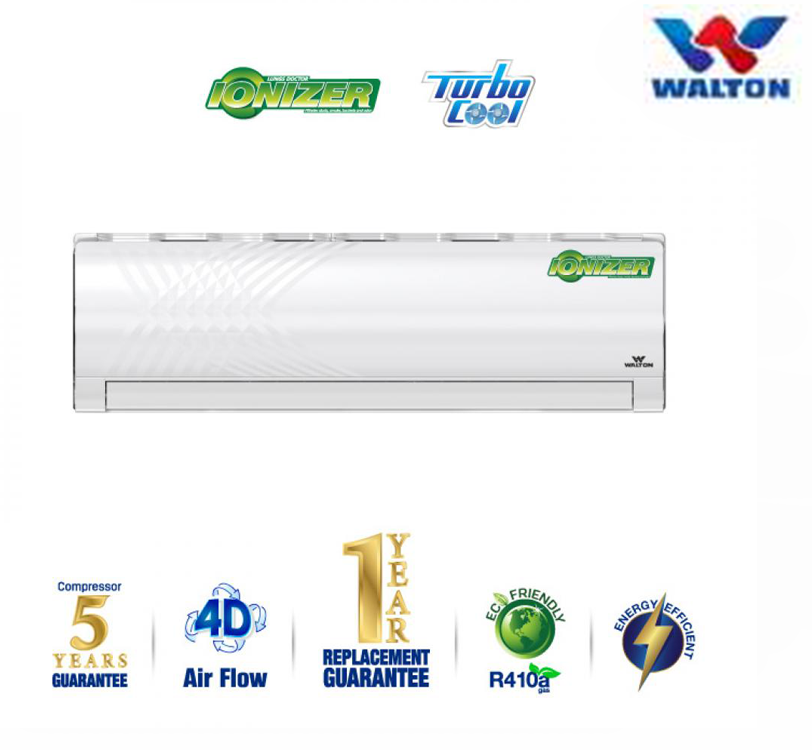

WSN-KRYSTALINE-24B

Air Conditioner Type

Non-Inverter

Function

Cooling

Cooling Capacity

7034 Watts (24000 BTU/hr)

Compressor

Rotary (Fixed Speed)

Refrigerant

R-410a

Function

Cooling

BTU/hr

24000

Rated Voltage

220V-240V ~ 50Hz

Rated Input Power (W)

2280

Rated Current (A)

10.70

Cooling Capacity (W)

7034

EER

3.08

Compressor Type

Rotary (Fixed Speed)

Refrigerant Type

R-410a

Refrigerant Amount (Kg)

1.480

Operating Range (Ambient Temperature)

20˚C to 43˚C

Evaporator Fin Type

Louvered Fin

Condenser Type

Copper Tube Condenser

Condenser Fin Type

Slit Fin

Maximum Pipe Length

15m

Turbo Mode (Maximum Cooling)

Yes

ECO Mode (Power Saving)

No

Dry Mode

Yes

Fan Mood

Yes

Auto Operation

Yes

Auto Restart

Yes

Comfort Colling

Yes

Speed Setting

Yes (Auto, High, Medium, Low)

Timer

Yes

Sleep

Yes

Display Type

LCD

Operation/Control

Via IR (Infrared Ray)

Child Lock

Yes

Temperature Unit Change

Yes (16​°C to 31°C)

Auto UP-Down Swing

Yes

Auto Left-Right Swing

Yes

Indoor Dimensions (mm) [L×W×H]

Unit: 1093 x 329 x 243

Packing: 1180 x 410 x 315

Outdoor Dimensions (mm) [L×W×H]

Unit: 865 x 370 x 687

Packing: 935 x 435 x 750

Net Weight (Indoor) (Kg)

17 ± 0.5

Gross Weight (Indoor) (Kg)

19 ± 0.5

Net Weight (Outdoor) (Kg)

46 ± 1

Gross Weight (outdoor) (Kg)

52 ± 1

Guarantee Information

Product Replacement Guarantee: 1 Year

(Note: if there are manufacturing faults in heat exchanger & compressor)

Warranty Information

For Residential Usage

Compressor Warranty: 5 Years

Spare Parts Support: 3 Years

After Sales Service: 1 Year (Free)

For Commercial Usage

Compressor Warranty: 5 Years

Spare Parts Support: 2 Years

After Sales Service: 1 Year (Free)
