Cooling Features :
|
|
Type
|
Direct Cool
|
|
|
|
Capacity :
|
|
Gross Volume
|
312 Ltr.
|
|
|
|
Net Volume
|
290 Ltr.
|
|
|
|
Net Weight
|
65 ± 2 Kg
|
|
|
|
Gross Weight
|
72 ± 2 Kg
|
|
|
|
Performance :
|
|
Climate Type (SN, N, ST, T)
|
N ~ ST
|
|
|
|
Rated Operating Voltage and Frequency
|
220-240V~ and 50Hz
|
|
|
|
Compressor Input Power (Watt)
|
V 0101- 145.7
V 0201- 145.7
|
|
|
|
Compressor Type
|
V 0101- RSCR
V 0201- RSCR
|
|
|
|
Cooling Efect
|
Freezer Cabinet Less than -18 ̊C
Refrigerator Cabinet 0 ̊C to +5 ̊C
|
|
|
|
General features :
|
|
Temperature Control (Electronic/ Mechanical)
|
Mechanical
|
|
|
|
Defrosting (Automatic/ Manual)
|
Manual
|
|
|
|
Reversible Door
|
No
|
|
|
|
Handle (Recessed/ Grip)
|
Recressed/ Grip/ Built-in
|
|
|
|
Lock
|
Yes
|
|
|
|
Refrigerant
|
V 0101- R600a
V 0201- R600a
|
|
|
|
Condenser
|
V 0101- Copper
V 0201- MS
|
|
|
|
Capillary
|
Copper
|
|
|
|
Thermostat
|
RoHS Certified
|
|
|
|
Polyurethane foam blowing agent
|
CycloPentene
[Eco-friendly (100% CFC &
HCFC Free) Green Technology]
|
|
|
|
Recommended voltage stabilizer capacity
|
Wide Voltage Range (140Vac - 260Vac). Voltage stabilizer is not required.
In case of voltages beyond this range, 2100VA is recommended
|
|
|
|

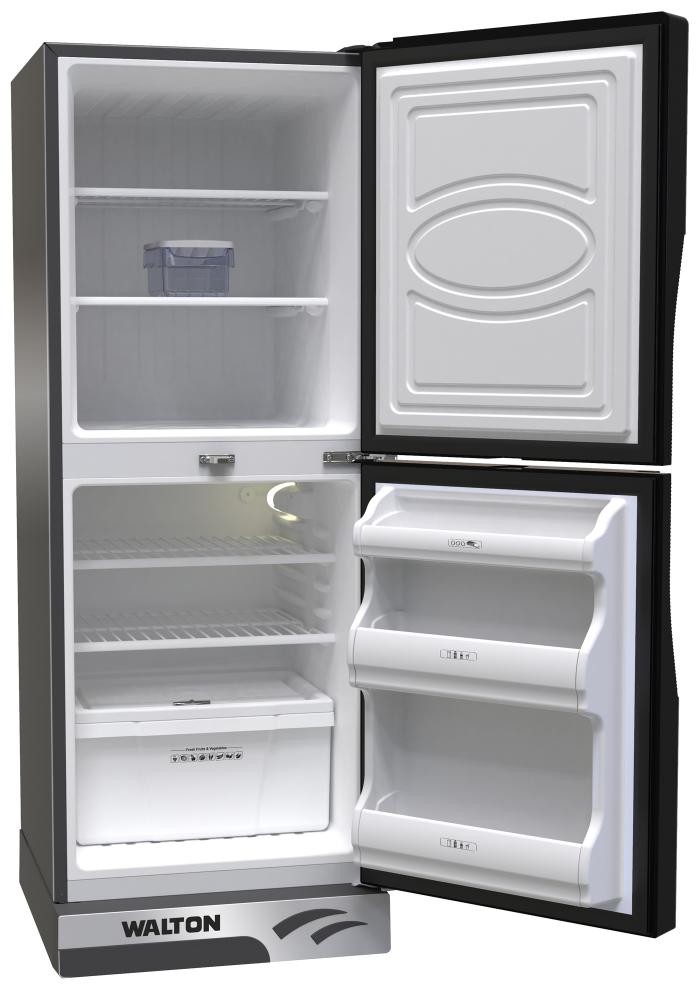

Refrigerator Compartment :
|
|
Shelf (Material/ No.)
|
Wire/2
|
|
|
|
Door Basket
|
PVC/3
|
|
|
|
Interior Lamp
|
Yes
|
|
|
|
Vegetable Crisper
|
Yes (Plastic)
|
|
|
|
Vegetable Crisper Cover
|
Yes (ABS/ PS)
|
|
|
|
Egg Tray or Pocket
|
Yes
|
|
|
|
Can Storage Dispenser
|
No
|
|
|
|
Deodorizer
|
No
|
|
|
|
Freezer Compartment :
|
|
Shelf (Material/ No.)
|
Wire/2
|
|
|
|
Drawer
|
No
|
|
|
|
Door Basket
|
No
|
|
|
|
Interior Lamp
|
No
|
|
|
|
Net Dimensions :
|
|
Width/mm
|
594
|
|
|
|
Depth/mm
|
708
|
|
|
|
Height/mm
|
1620
|
|
|
|
Packaging Dimensions :
|
|
Width/mm
|
625
|
|
|
|
Depth/mm
|
745
|
|
|
|
Height/mm
|
1630
|
|
|
|
Loading Capacity- 40HQ/ 40Ft/ 20Ft
|
78/ 57/ 27
|
|
|
Warranty Information:
Residential Use:
- Replacement Guarantee: 1 Year (Condition Apply)
- Main Parts (Compressor): 12 Years
- Spare Parts: 4 Years *
- After Sales Service:5 Years *
Commercial Use:
- Main Parts (Compressor): 4 Years
- Spare Parts: 2 Years *
- After Sales Service: 2 Years *
Note:
This warranty does not cover the following cases:
1. Any damage due to accident, electrical fault, natural causes, negligence or improper installation.
2. Any damage or failure caused by unauthorized modification or alteration.
3. Products with original serial numbers that have been removed, distorted or cannot be readily recognized.
